Custom Made 2

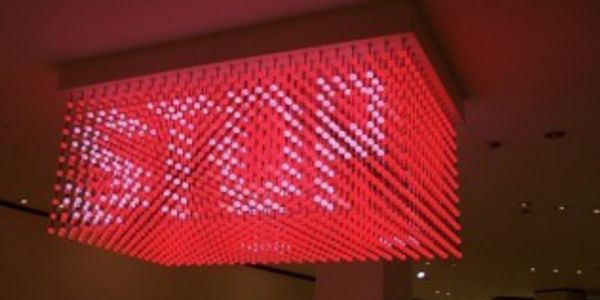

Single Pixel and Custom Mechanical:

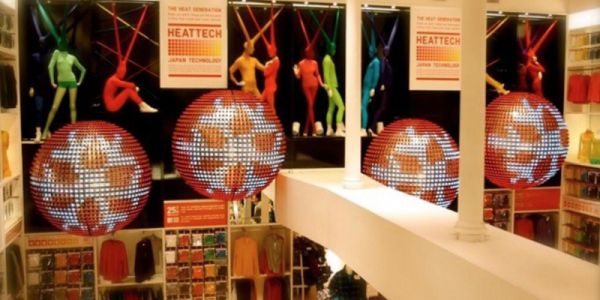

Single pixels offer the freedom to create unique shapes and forms. The spheres, serpentine wall and individually bars in the accompanying pictures are an example of how you can ‘play’ creatively and create video walls that no one else has. You can pretty much make any 2D or 3D design and have it populated with pixels to create a unique moving experience.

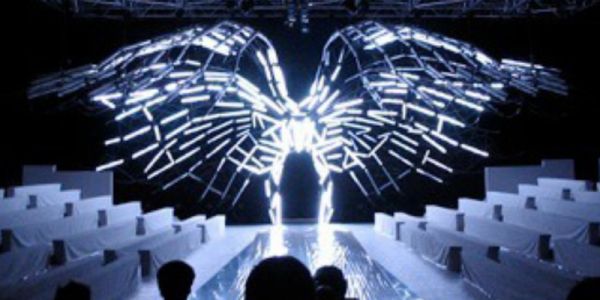

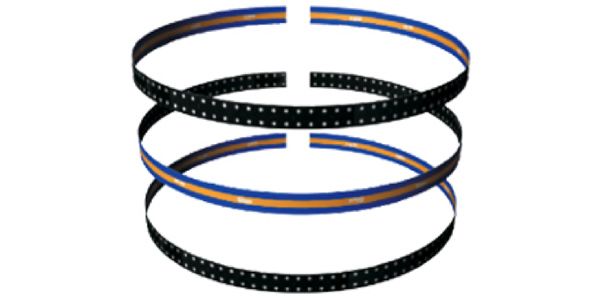

Strip & Custom Mechanical

Ready made strips of LED offers an efficient way to create flowing curving and unique designs video displays. Allows you to make video displays out of the box – literally.

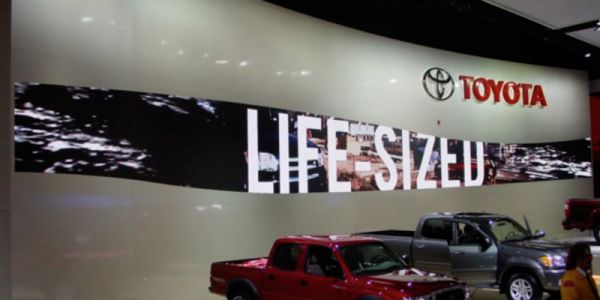

Small High Res Module and Custom Mechanics

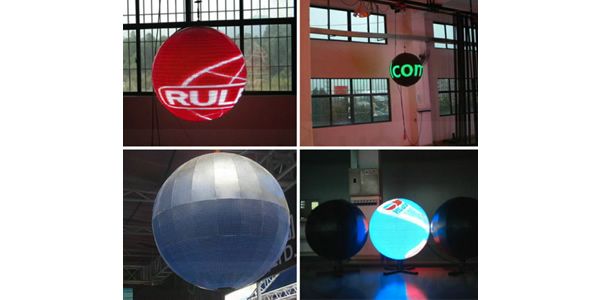

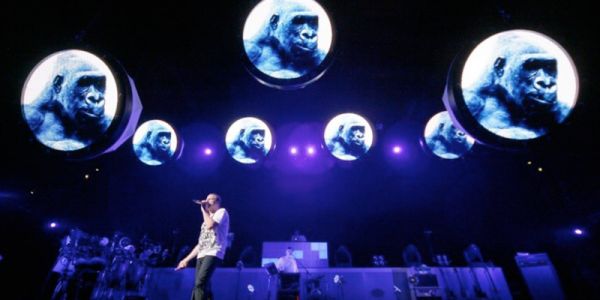

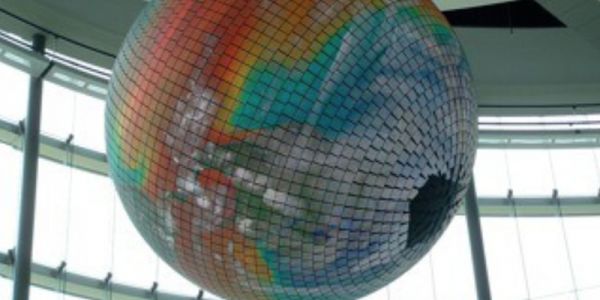

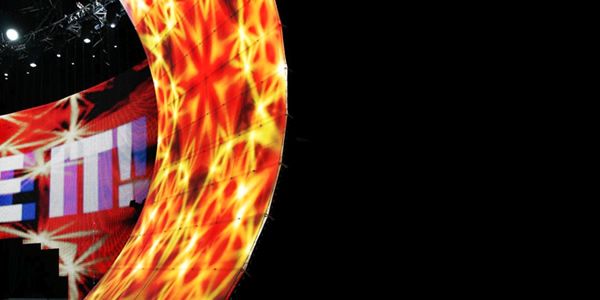

Using small high resolution tiles integrated in Custom mechanics creates a better resolution display than single pixels and strips, but still allows you some creative freedom like the curved walls, globe and wall in the pictures above indicate.

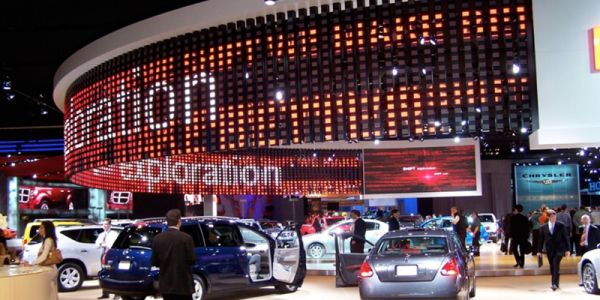

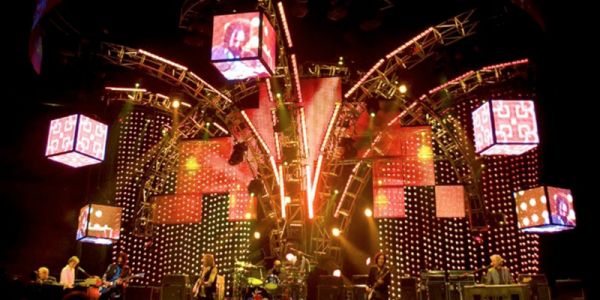

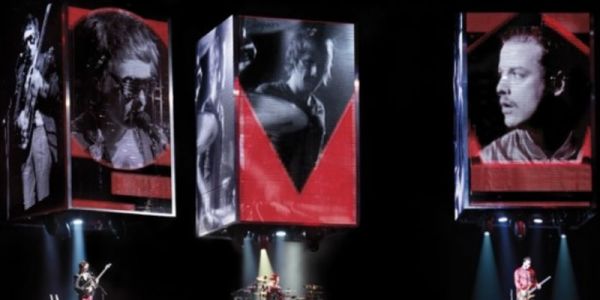

Low Res Panel & Custom Mechanical Structures

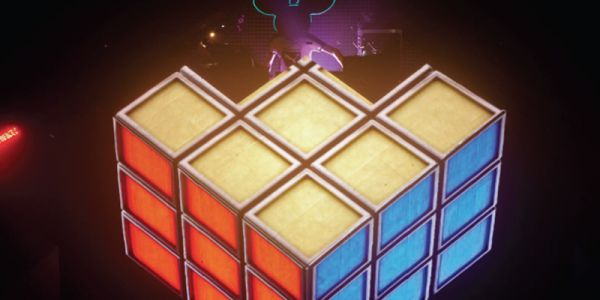

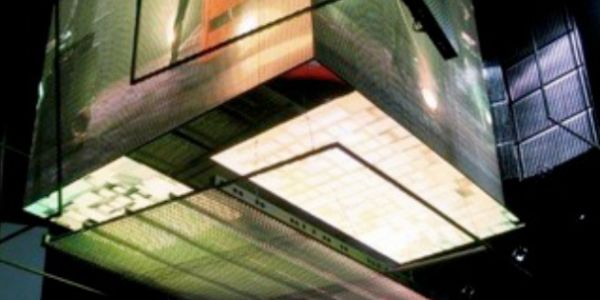

Cubes, Circles, Cylinders, and even moving and folding up is all possible and done before with low resolution panels build into custom mechanical structures as the examples above show.

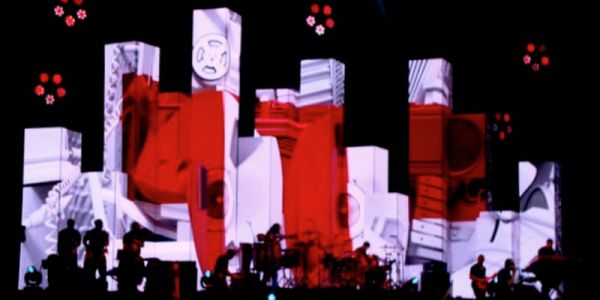

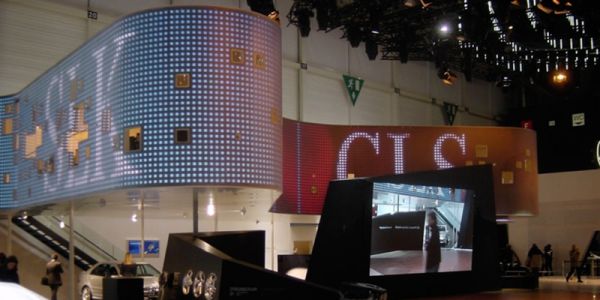

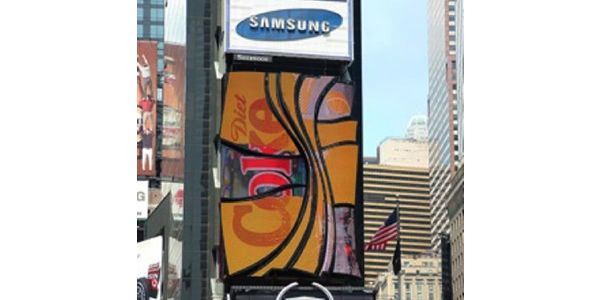

High Resolution Panel & Custom Mechanical

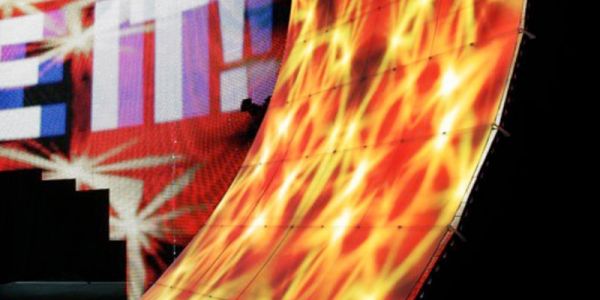

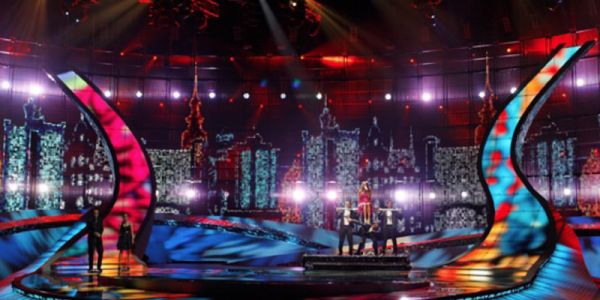

Having higher resolution imagery but not wanting it rectangular is possible by creating custom mechanical structures and integrating high-resolution panels into it. It takes quite a bit of detailed engineering and custom content designing, but you will have a display of high quality and high resolution in a unique way as the cubes and bars indicate in the pictures above.

High Brightness RGB and Custom Mechanical Structures

The advantage of high brightness pixels is that you can use them in many environments and have individually controllable pixels. Diffusing and integrating these pixels is easily achieved and can create great freeform effects.

Custom Circuit Board and Custom Mechanical Structures

Custom circuit boards will allow you to create displays in freeform shapes specific to your project – they will automatically be created within a custom mechanical structure. Projects like in the images above will be easier to achieve.

Single Pixel and Diffusers:

By using single pixels you can create any freeform design and with diffusers you can smoothen the image by using fabric or scrim, encapsulated in plastic balls like above, or you can integrate it within the environment by using metals, glass and a slew of other diffusing metals. Come to experiment in our LED LAB what diffusion can do.

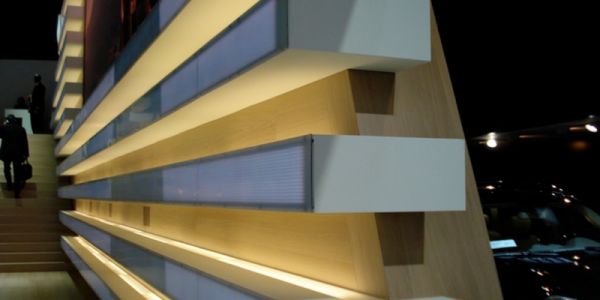

Strip & Diffuser

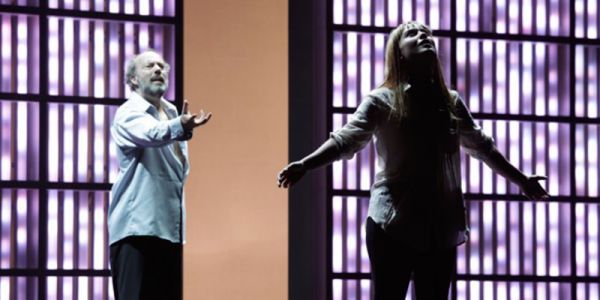

Smoothening the imagery by using acrylic on strips so the individual pixels are not visible. You can use all kinds of fabrics, scrim, plastics or even glass to create a diffused effect on the led’s.

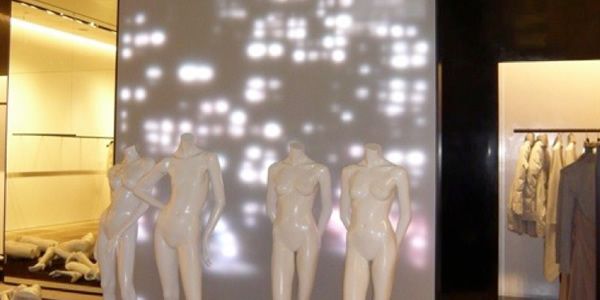

Small High Res Module and Diffusers

Diffusing High Resolution led video tiles gives the display a softer look and feel. The haziness created by diffusing eliminates any individual pixels and makes it a creative ‘smokey’ content.

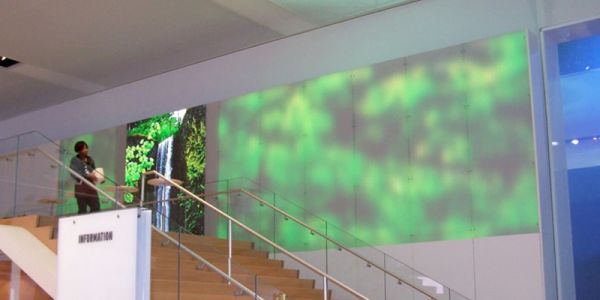

Low Res Panel and Diffuser

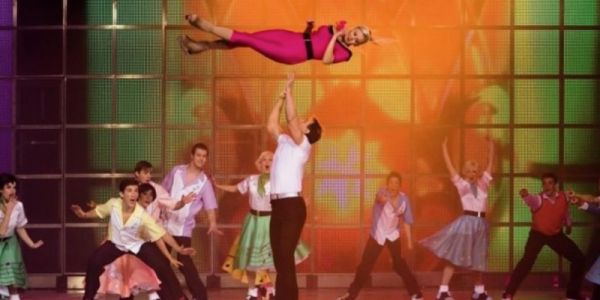

Efficient low-resolution products are often used with diffusers, still enabling moving imagery in many environments while seeing individual pixels less prevalent. A true solution to create unique atmospheres and creative looks in any space. The four panel pictures show multiple examples from no diffuser to fabric, to acrylic, to mirrored glass.

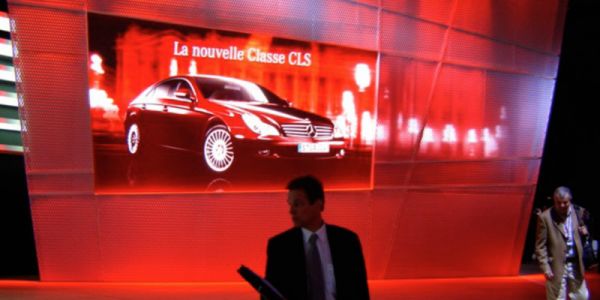

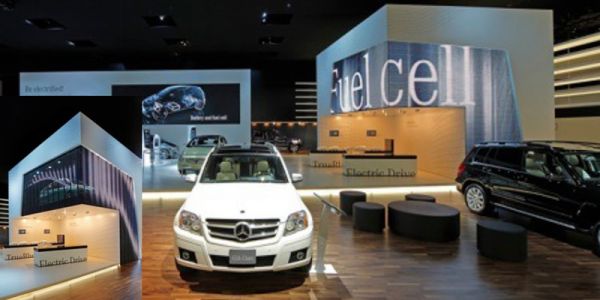

High Resolution and Diffusing

When using diffusing with high resolution modules you may lose some of the resolution, but you achieve a very unique effect as the red fabric does in the picture, the frosted glass does to the office wall and the low res panels in front of high res panels in the pictures above. Typically combining non diffused areas with diffused parts is the best way to play with diffusing high resolution panels.

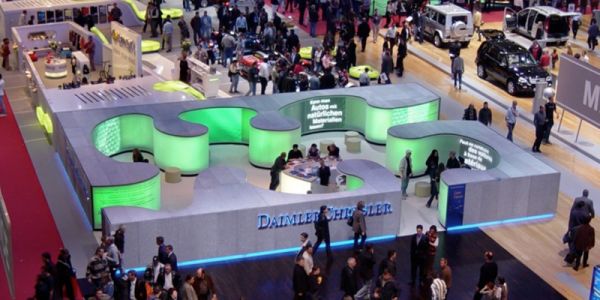

High Brightness RGB and Diffuser

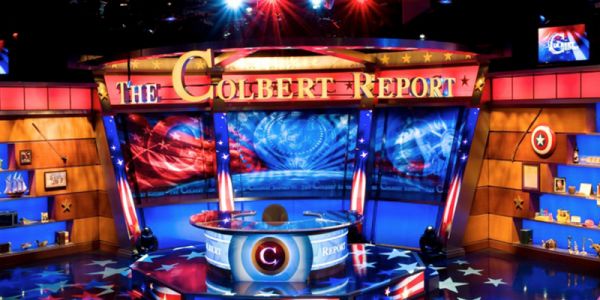

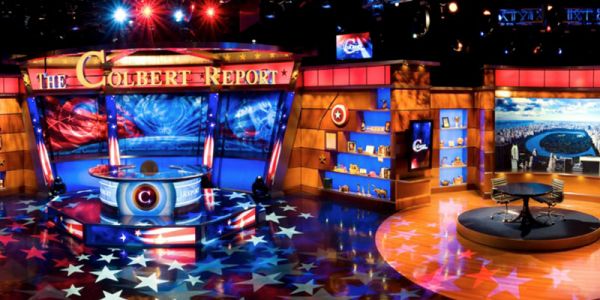

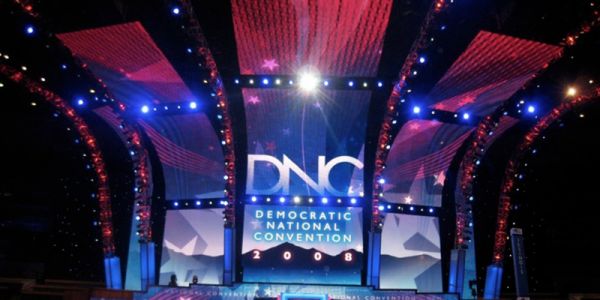

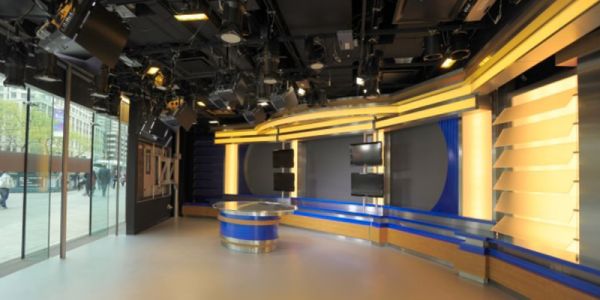

High brightness pixels with a wide angle lend itself perfectly for diffusion – as the examples of the TV studio pictures above indicate. The individually controllable pixels offer a pattern and changing environment easily.

Custom Circuit Board Diffused

Diffusing custom circuit boards as with any led technologies allows for a smoother image.

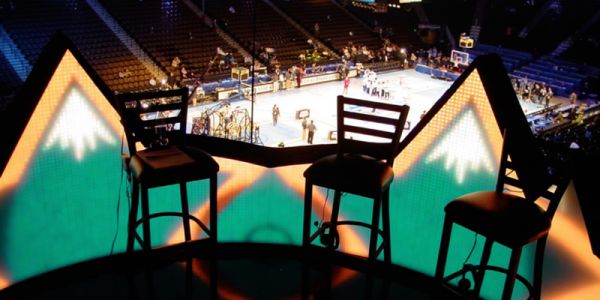

Single Pixel and Masking

With the freeform designs you can make with single pixels, masking allows you to make shapes accentuate like in the mountains created in the picture above.

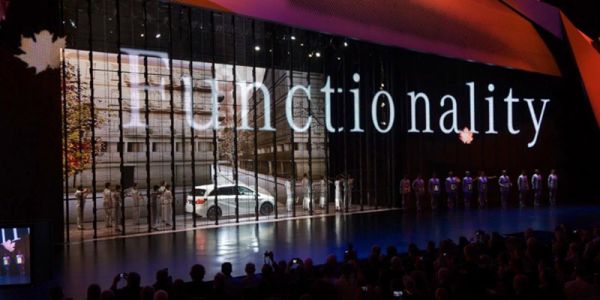

Strip and Masking

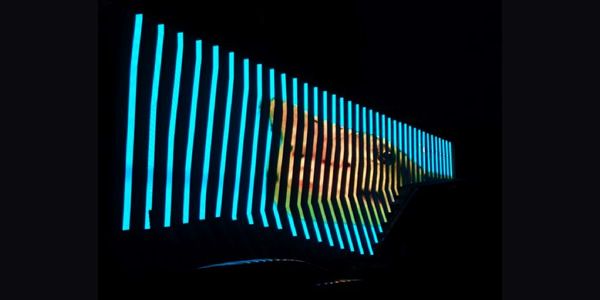

With strips you can play around with the design as if you are masking. In the above picture is a creative use where the strips are placed and spaced out as if masking is applied.

Small High Res Module and Masking

By means of masking you can create more freeform designs like the wave and circles in the pictures above, while not compromising on the high resolution video imagery.

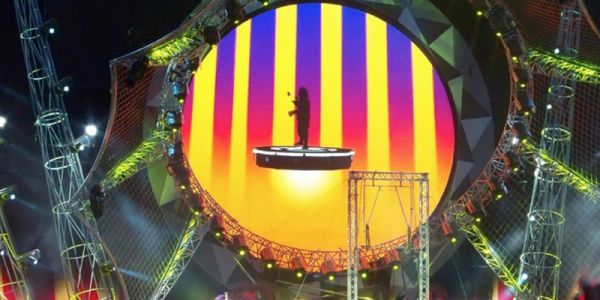

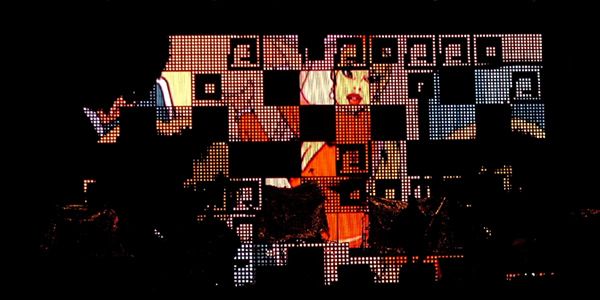

Low Resolutions and Masking

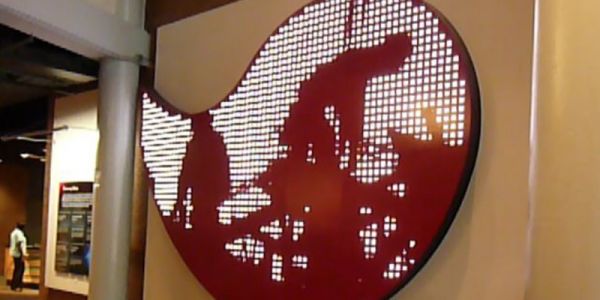

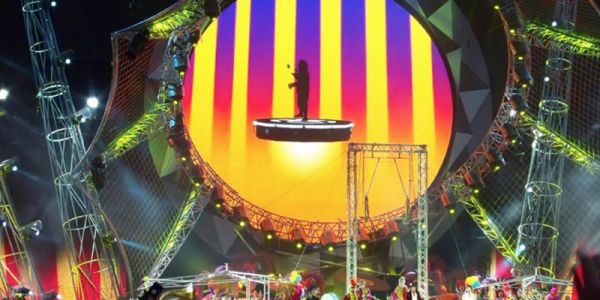

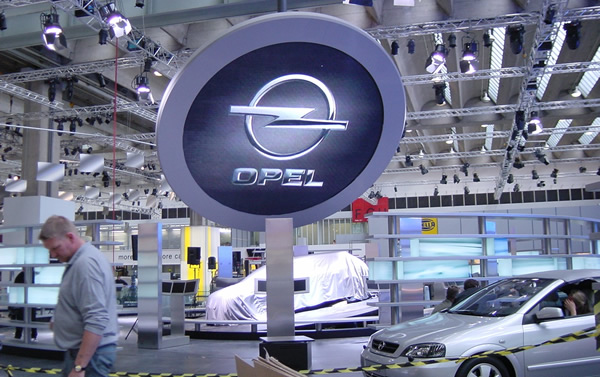

Typical low resolution panels are made square or rectangular, but with masking you can create circles as the picture above shows. And the 2nd picture with the masking created a grid look that the designer was looking for while still being able to integrate seamless and lightweight video displays.

High Resolution and Masking

Achieving free form and out of the box shaped video displays is easily achieved with masking, or in other words blocking out areas of the panels to create the circle, wave and odd shaped rectangle in the pictures above.

High Brightness Pixels and Masking

Typically these high brightness pixels are on custom size strings and integrated in custom mechanics and applied with diffusing special shapes and freeform you generate a custom design.

Custom Circuit Board and Masking

Technically you can make any shape and form with custom circuit boards, however masking to create another shape and form is easily achieved with covering the are a’s not wanting to show.

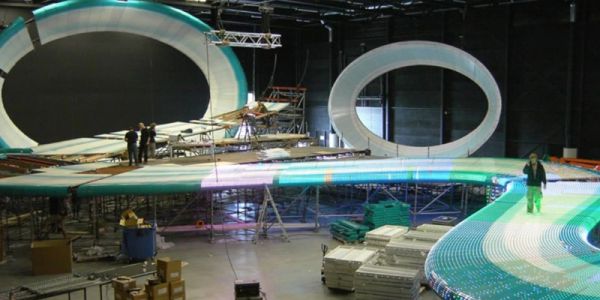

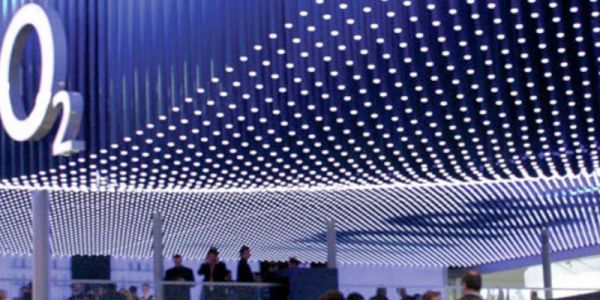

Single Pixel and Floors & Ceilings

The unlimited freedom of single pixels was used to its maximum in the set picture above, both the floor and ‘orange peel’ back drop was a steel set populated with single pixels protected with acrylic covering. Individual pixels used in the ceiling pictures are unique ways for atmospheric effect included with messaging.

Strip and Floor & Ceiling

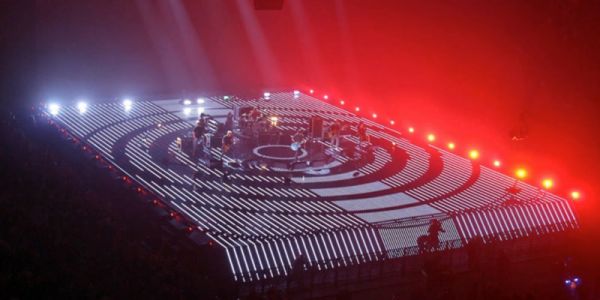

Strips enable you to create floors, walls and ceilings at the same time as the pictures above show you.  Spacing it at various distances between the strips can offer you a tapered effect, spacing it closer or further away from each other offers different resolutions, angling it in different directions offer a three dimensional feel – all offer truly creative video floors and ceilings.

Small High Res Module and Floors & Ceilings

High resolution video imagery in floors and ceiling – yes it is possible as you can tell from the pictures. It does require creative engineering to create support points and hanging points.

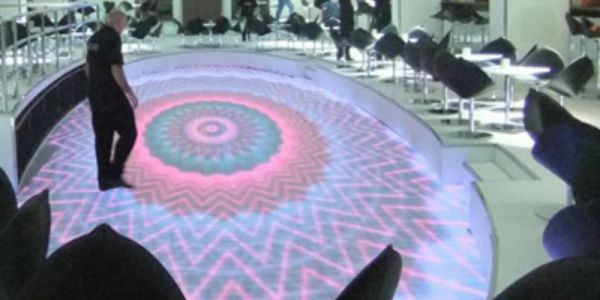

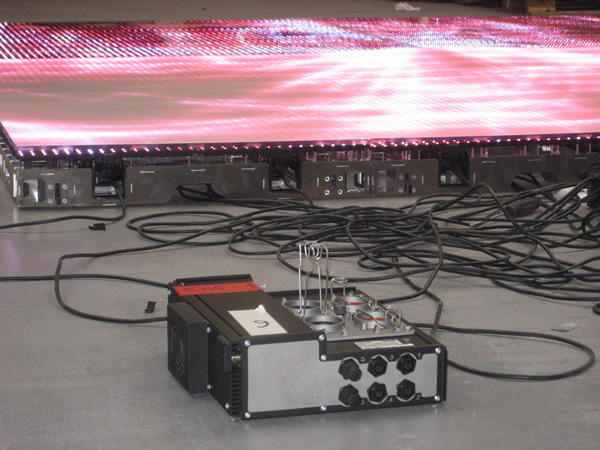

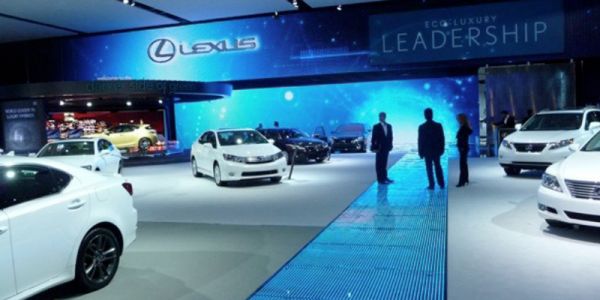

Low Resolution Panel and Floor & Ceiling

Low-resolution panels allows with relative ease to create video floors and ceilings. Typically these panels are lightweight and have enough hanging and mounting points to place it in unique spaces.

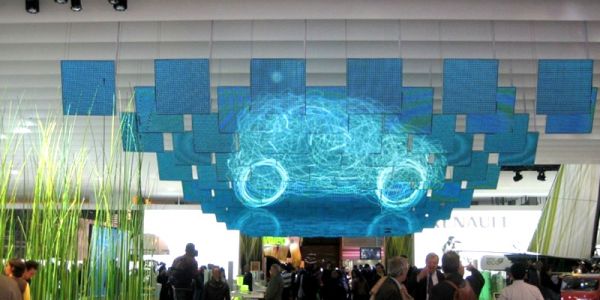

High Res Panel and Ceiling & Floor

As technology advances, possibilities grow. High resolution panels are now less weight require less accessories and are easier to handle making ceiling and floors more possible with high resolution video displays.

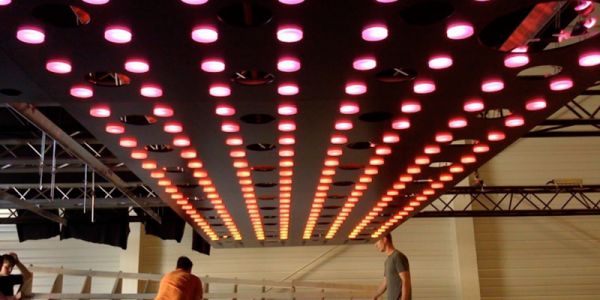

High Brightness and Floor & Ceiling

As the picture indicate and the typical high brightness RGB pixels can be spaced at multiple lengths they are easily used in ceilings and floors. For all floor applications, but especially with high brightness ventilation is important to expand the life of the LED’s.

Custom Circuit Board and Floor & Ceiling

Custom Circuit boards can be integrated like any other LED Video technology into floors and ceiling by designing the custom circuit board in such a way that hanging and mounting points are pre determined.

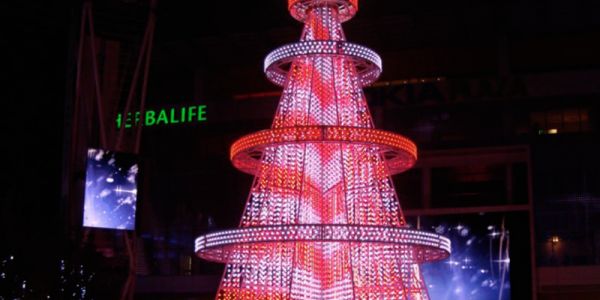

Single Pixel and Integrated in Materials

When using single pixels integrated in materials like the steel facing in the freeform picture, the pixels encapsulated in sphere build into a holiday tree and the circular tube enables you to have a ‘sculpture’ when the video is not running.

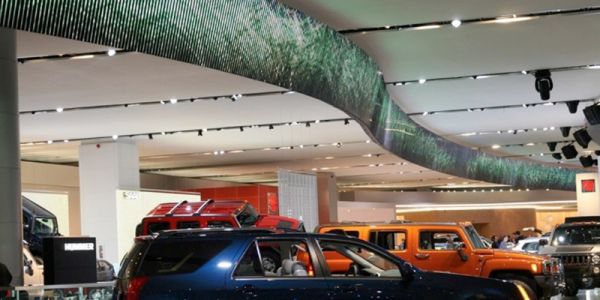

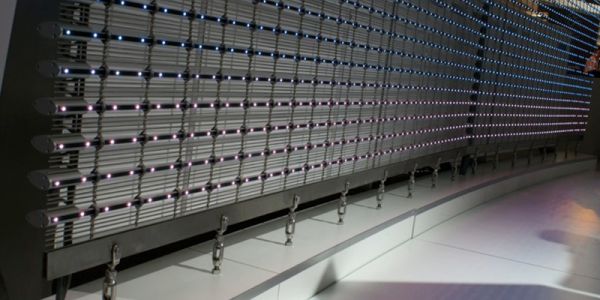

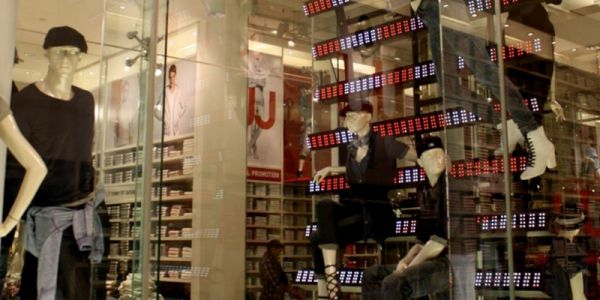

Strip and Integrated in Materials

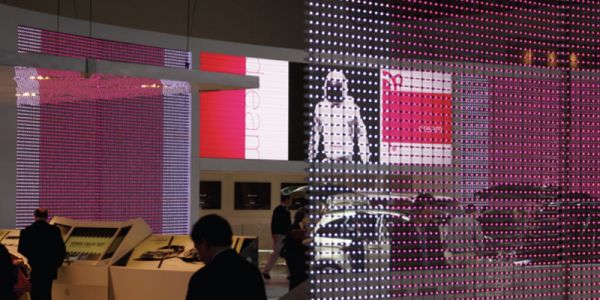

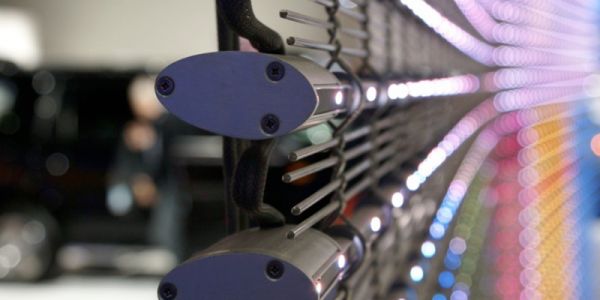

Using strips inside a metal mesh has proven to create an interesting industrial look and feel as the pictures above show you. Integrating it in different directions into a wall give it the contemporary look.

High Res Module and Integration in Material

High Res Module above is integrated in a custom curve wall sandwiched with acrylic.

Low Res Panels and Integrated in Materials

Low Resolutions of its own nature is integrated into unique materials; weather it being aluminum, plastics or fabrics. Above are the most common Low Resolution products integrated in metal and acrylics.

High Res Panel and Integrated in Material

To create an industrial look like above high resolution panels were integrated in metal structures creating unique video walls.

High Brightness and Integrated In Materials

High Brightness Pixels are typically on a string making it easy to integrate into materials.

Custom Circuit Boards Integrated in Material

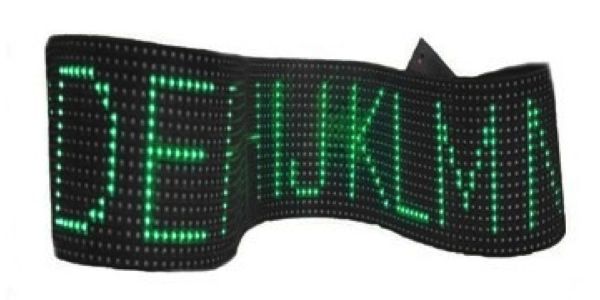

The advantage of custom circuit boards allows and enables integration as the picture above shows into a rubber flexible materials allowing more creative freedom in any size led display.

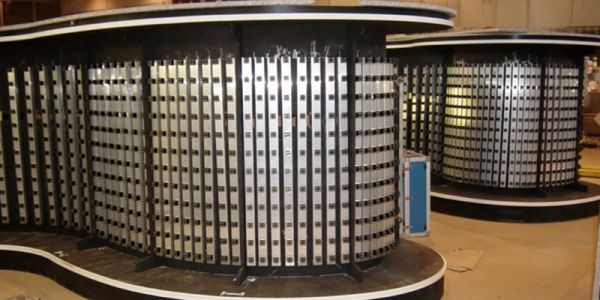

Custom Mechanics:

Designing structures and mechanics to make cubes, cylinders, circles, ribbons, sculpture and other unique shapes by using a variety of LED products and resolutions.

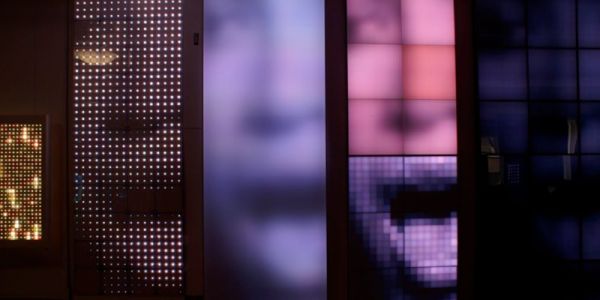

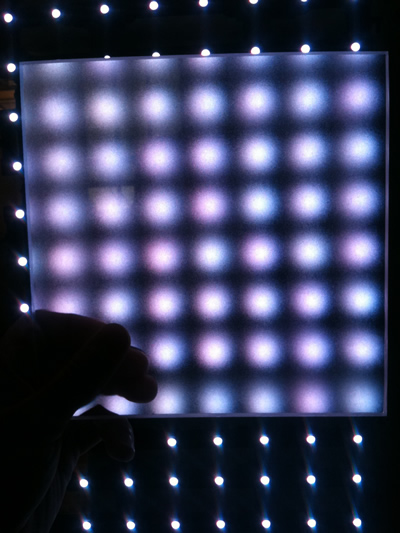

Diffusion Technique:

Glass, plastics, scrims, fabrics and metals used in front of an LED screen gives it a  total different look and feel. Frosted glass can soften the video imagery. Metals can offer an industrial look. Fabric can creates a unique effects of playing video behind it.  When off it all blends with its environment.

Masking:

By using existing LED technologies and masking the corners, edges and area's off you can create letters, figures and shapes efficiently create a creative looking display without too much customization.

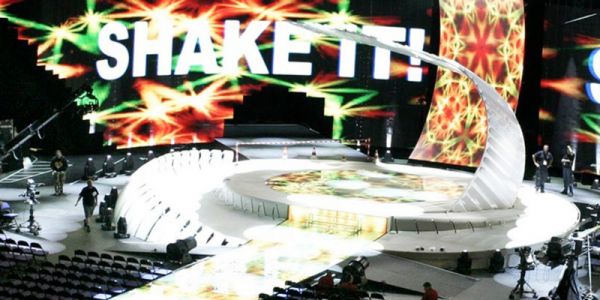

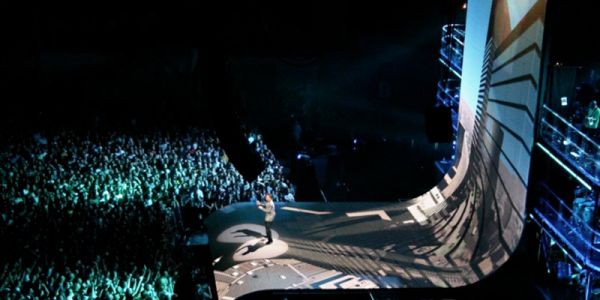

Integration Technique - Floors Ceilings

With the variety of product is have become easy to build in LED products in ceilings, floors, sculptures in various resolutions, and with different technologies.

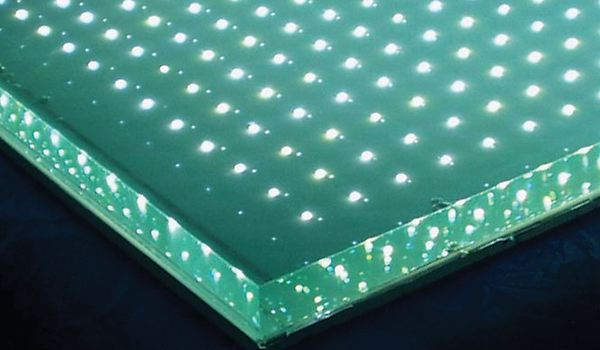

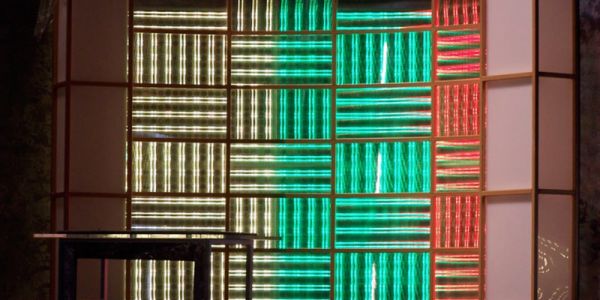

Integration Technique – Within Materials:

LED technology integrated into metal, glass, and concrete surfaces offering it to blend well with its environment. By means of masking with materials you can create different forms and shapes of displays.

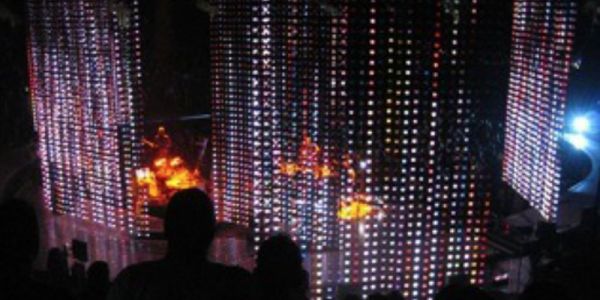

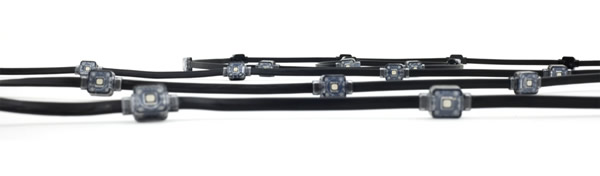

Single Pixels:

Even more creative freeform designs are possible with Single Pixels. Custom mechanics populated with pixels on a string allow you to go 3-dimensional and total creative freedom.

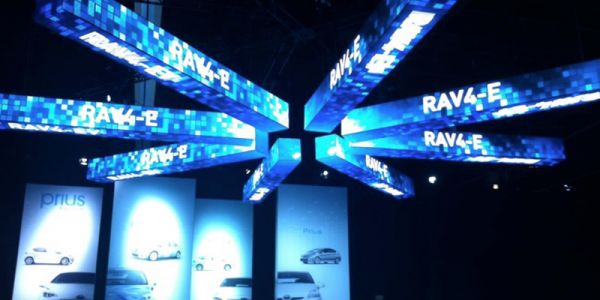

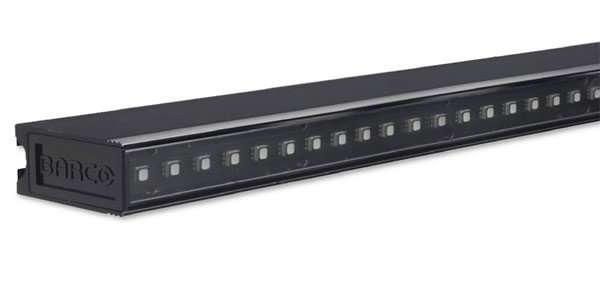

Strips:

Various strips populated with LED’s offers you set design pieces, with a flexibility to space them and angle them in numerous different ways. The effect of fanning the spacing between the strip alone gives a very unique effect.

Small High Res Module:

Efficient ready made smaller LED modules allows you to curve, angle and place the blocks in a unique format offering a high resolution display with ready made 'building blocks'.

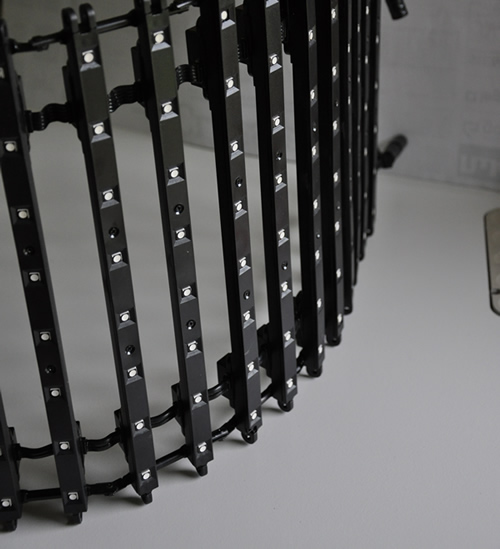

Low Res Tiles:

Great to use messaging and clear video imagery at long distances or close up for creative effects. A price efficient solution to create a moving display.

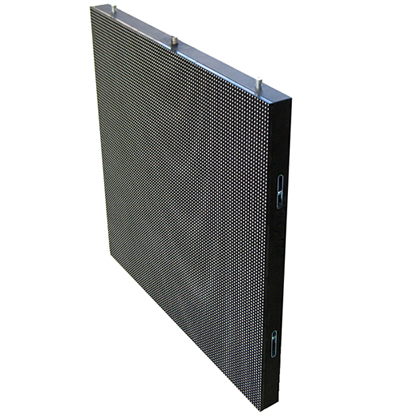

High Res Tiles:

Space them out, set them at different angles, and build them in custom structures and you get a unique shape video display efficiently with crisp and clear images.

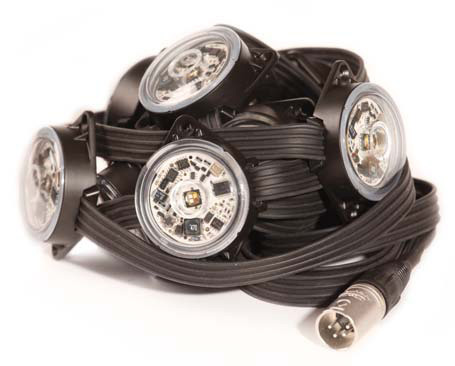

High Brightness RGB Pixel:

Need a punch of light? Wanting a flicker free and even field of colored light? Want edges and various shapes lit up? An extreme bright video pixel that is a good solution.

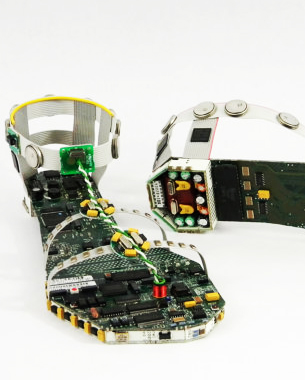

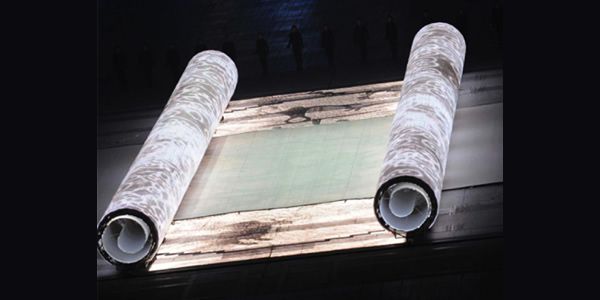

Custom Circuit Board:

Creating your own LED video shapes with custom circuit board. Artistic designs are now possible, architectural facades and sculptures can be made with custom circuit boards of LED.
